Not all HVAC problems show themselves all at once. Some failures unfold in stages, and solving them correctly requires patience, experience, and a methodical diagnostic process. That was the case during a recent HVAC service call in Wise County and surrounding areas, where a system experienced repeated electrical failures and shutdowns.
Initial Inspection and System Evaluation
Our visit began with a full inspection of four HVAC units on the property. The customer was provided with multiple options for replacement and system improvements, including airflow and comfort upgrades. Although the equipment carried a lifetime warranty, several components were clearly approaching the end of their service life.
At the time of the visit, the system was still able to provide emergency heat, which allowed the homeowner to remain comfortable while deeper diagnostics were performed.

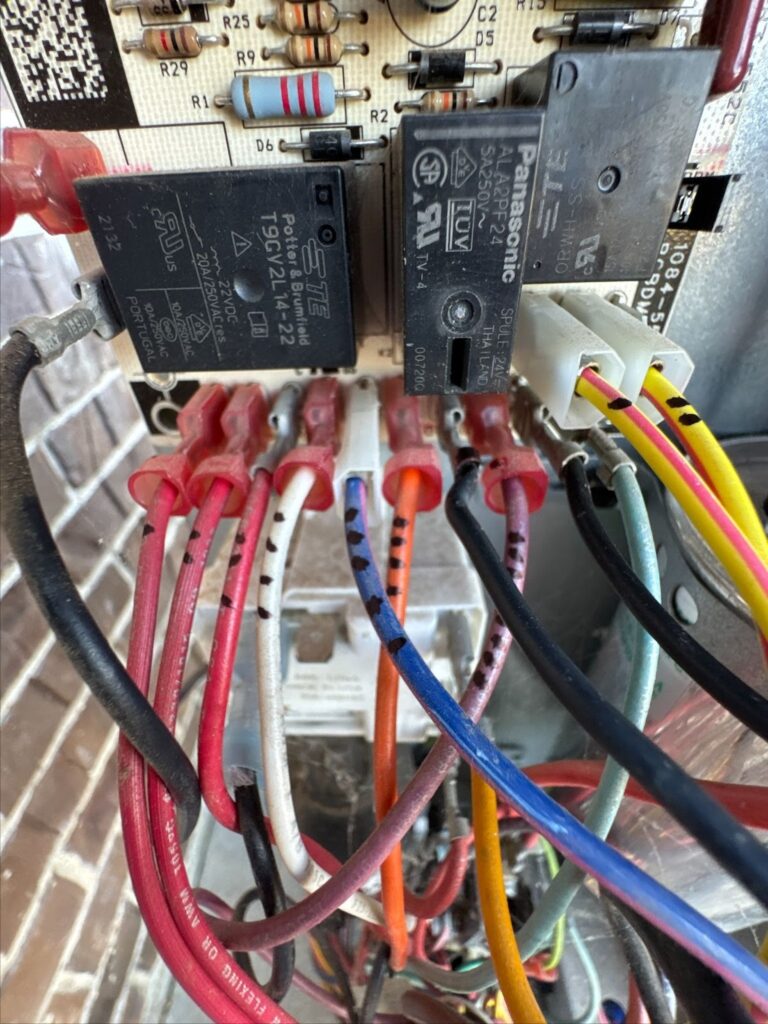

Identifying the Defrost Board Failure
During testing, we discovered that the outdoor unit’s defrost control board was shorting the system to ground and repeatedly blowing the fuse. To prevent further electrical damage, the outdoor unit was isolated. At that point, no additional testing could be safely completed until the failed board was replaced.
Defrost Board and Capacitor Replacement
Once approved, Chenevert’s Home Services replaced the failed defrost control board on the outdoor unit. After installation, the system was brought back online so we could fully test operation and determine what caused the original failure.
During this phase, we also proactively replaced a weak capacitor on HP1. Weak capacitors often place unnecessary strain on motors and compressors, and replacing them early can help prevent larger system failures.

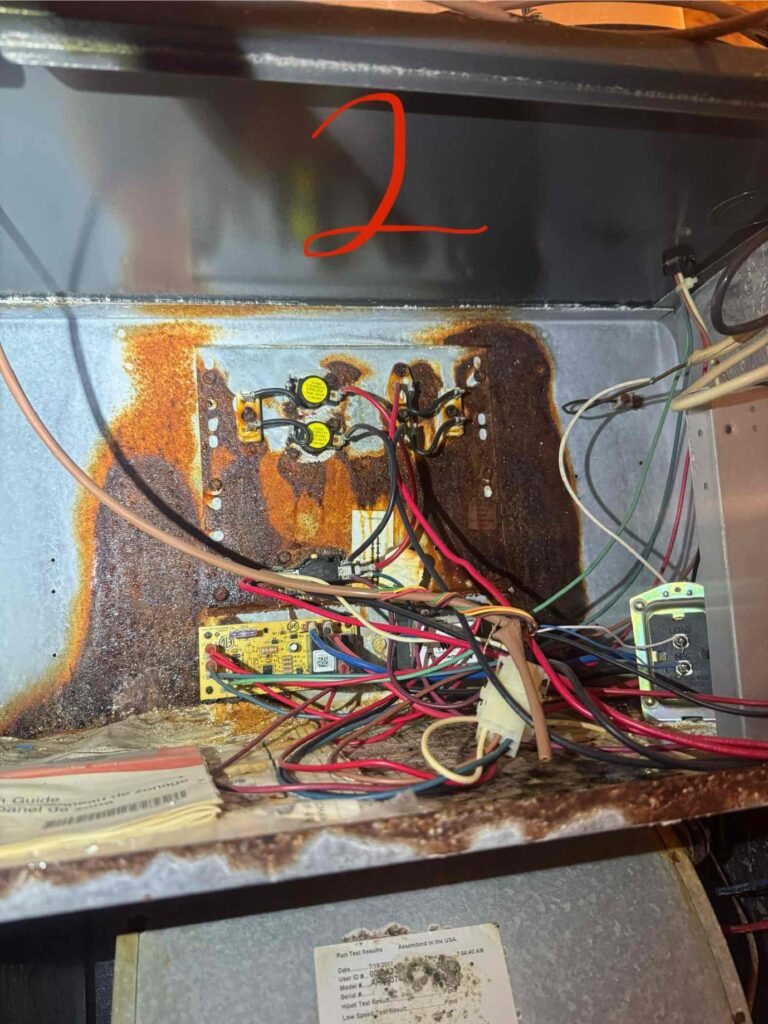

Discovering the Root Cause: A Failed High-Pressure Switch
With the new board and capacitor installed, further diagnostics revealed the true underlying issue — a high-pressure switch that had failed internally and was shorting to ground. This type of failure can mimic other electrical problems and is often only uncovered once other components are ruled out.
Because the high-pressure switch is part of the sealed refrigerant system, proper repair required more than a simple part swap.
Proper Refrigerant Recovery and System Repair
To complete the repair correctly, our technicians performed the following steps:
- Recovered the existing refrigerant
- Purged the system with nitrogen
- Installed a new filter drier to protect against moisture and debris
- Replaced the failed high-pressure switch
- Evacuated the system to remove air and contaminants
- Leak checked all repairs
- Recommissioned the system with the correct refrigerant charge
Once complete, the system was fully tested to confirm stable pressures, safe electrical operation, and reliable heating performance.
Why Thorough HVAC Diagnostics Matter
Electrical shorts, blown fuses, and pressure-related failures are often symptoms — not the root problem. Without isolating components and testing the system step by step, underlying issues like a failing high-pressure switch can easily be missed.
This approach helps prevent:
- Repeat breakdowns
- Premature compressor failure
- Costly emergency repairs
At Chenevert’s Home Services, we believe HVAC repairs should solve the problem once — not temporarily mask it.
